Key Features:
-
12 dBi Omni-Directional Gain
-
Highest Ingress Protection IP 66
-
High Quality Construction
-
Vertical Polarization
-
Heavy-Duty Mounting Elements
-
5 Years Warranty
-
Designed for All Weather Operation
|
Applications:
-
2.4 GHz Band Wireless LAN
-
IEEE 802.11b/g WLAN Systems
-
Base Station Application
-
WiMAX
|

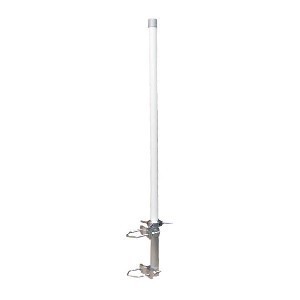

OMD24012V is an omnidirectional antenna working in the 2.4 GHz band with 12 dBi gain that can be mounted for vertical polarization. Made with very high quality materials, construction grade aluminium alloy, UV-protected plastic cover and zinc galvanized U-bolt. Designed for operation under severe weather conditions including salt water environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as rock-stable operation. It can be used as a small base station.
Electrical Properties |
Frequency |
2.4 - 2.5 GHz |
Gain |
12dBi |
Polarization |
vertical |
Beamwidth deg horizontal |
360° |
Beamwidth deg vertical |
6° |
VSWR |
<1.8 |
Impedance |
50 ohm |
Front to back ratio |
> 35 dB |
Enclosure Properties |
Technology: |
Microstrip |
Material: |
UV protected |
Colour: |
White |
Min temperature: |
-40°C / -40°F |
Max temperature: |
80°C / 176°F |
Mechanical Properties |
Input Connector |
N-type female
|
Outside Dimensions |
1130x23mm / 44.5x0.9" |
Weight |
1.1kg / 2.4lbs |
Specification subject to change without notice.
Plots:
